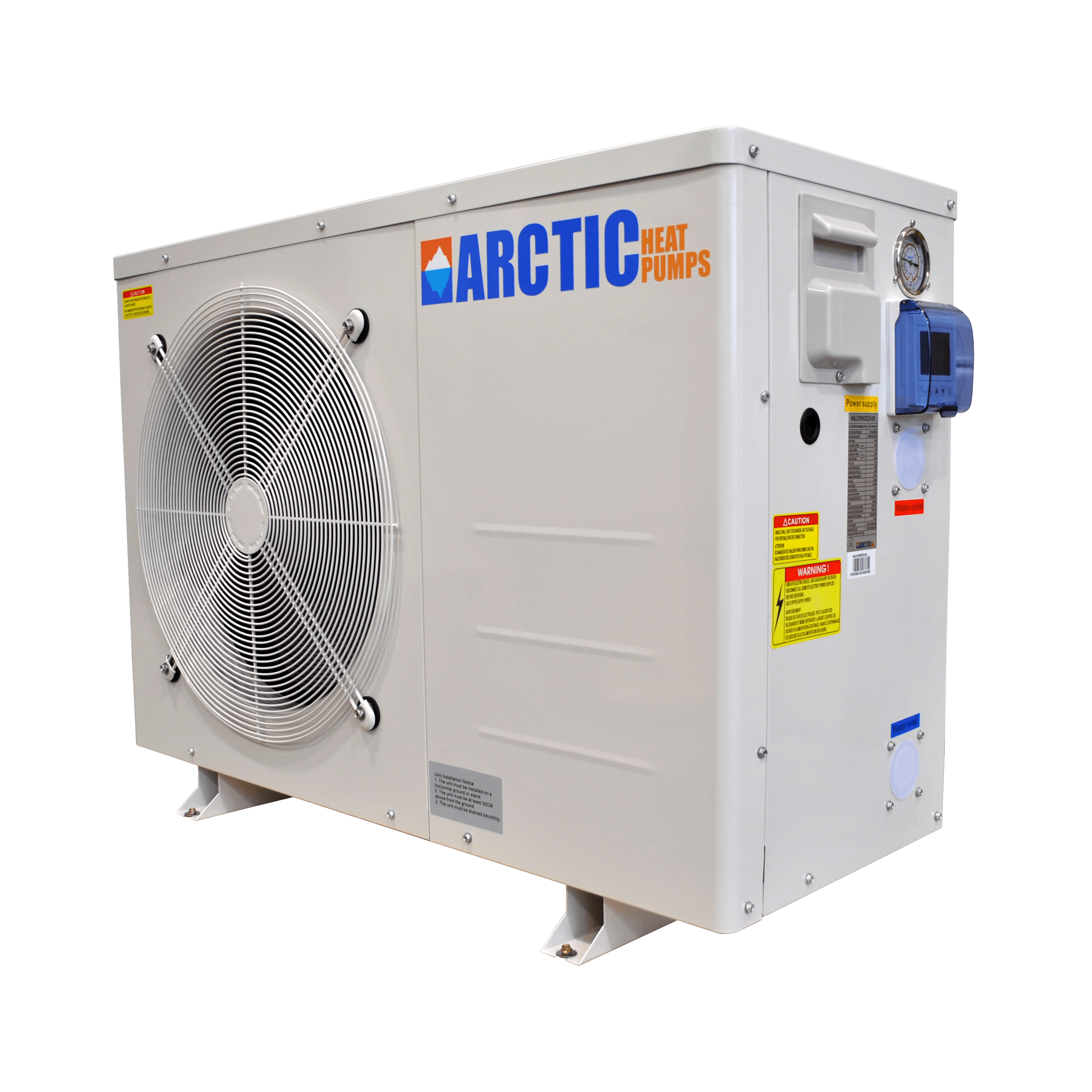

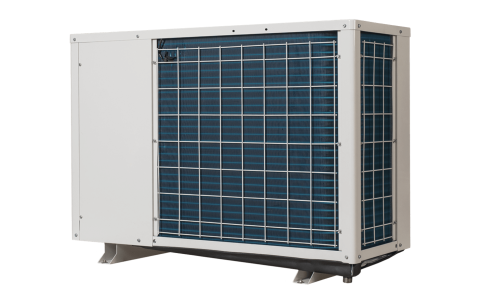

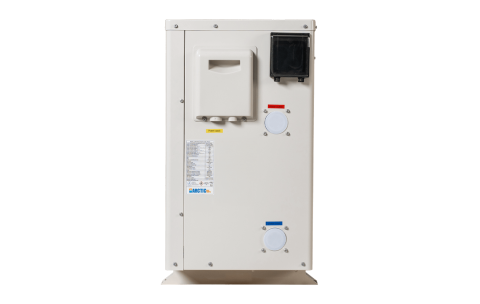

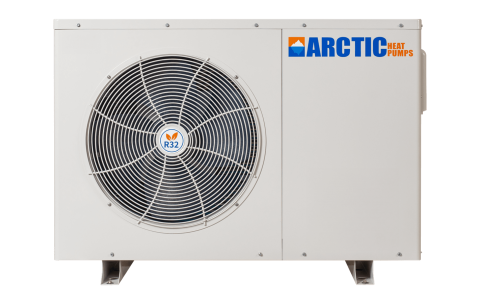

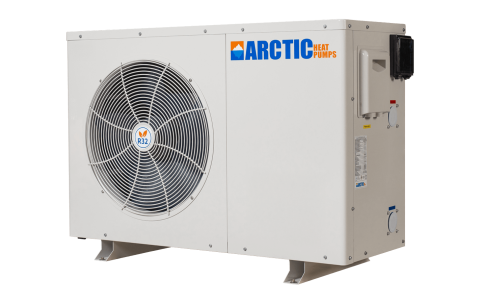

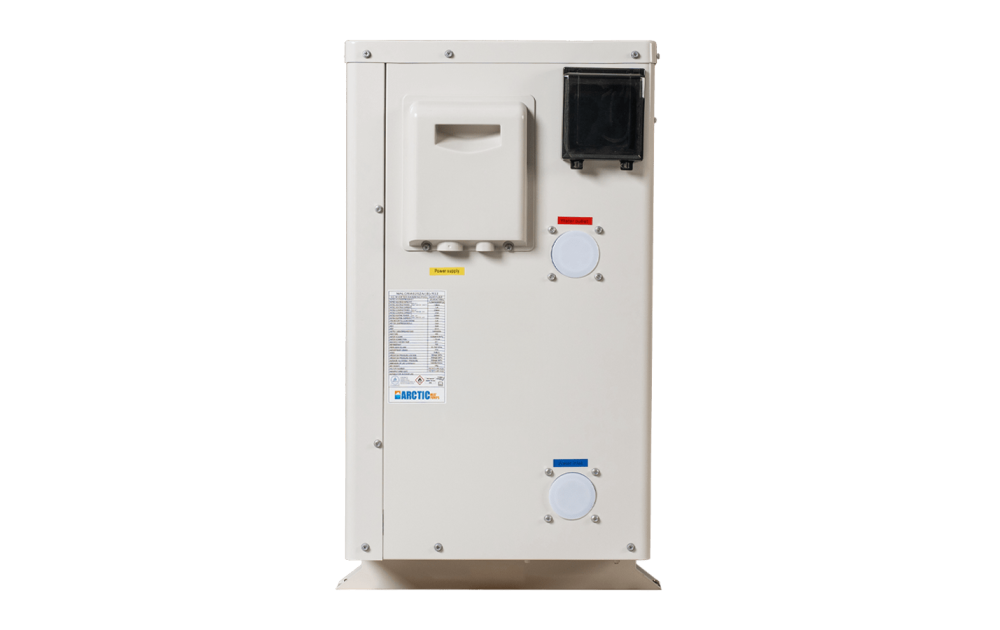

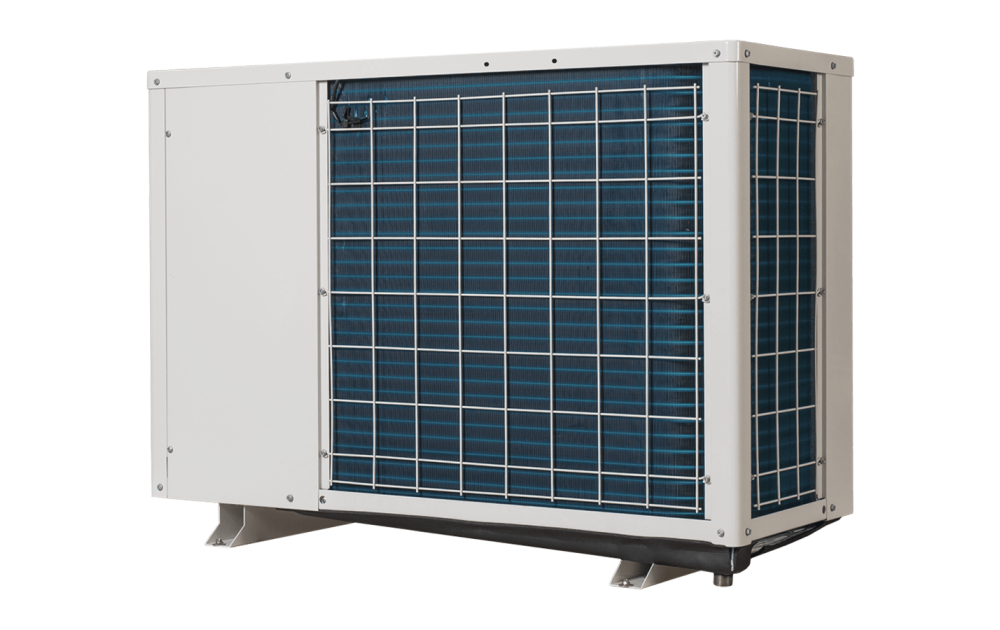

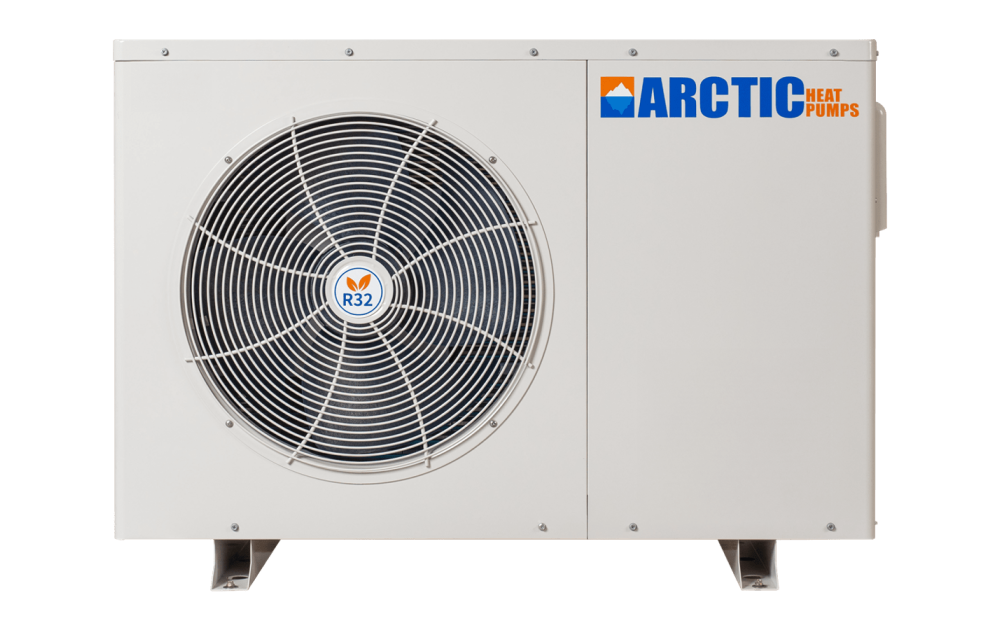

Arctic Titanium Heat Pump for Swimming Pools and Spas - Heats & Chills - 37,500 BTU - DC Inverter
CA$ 3,552.32
SKU:
N-446
14 In Stock
Arctic Heat Pump 025ZA/B - 11KW (Heats/Cools)
Heats & Chills - 37,500 BTU - DC Inverter
Air to Water Heat pump for pools, hot tubs and spas

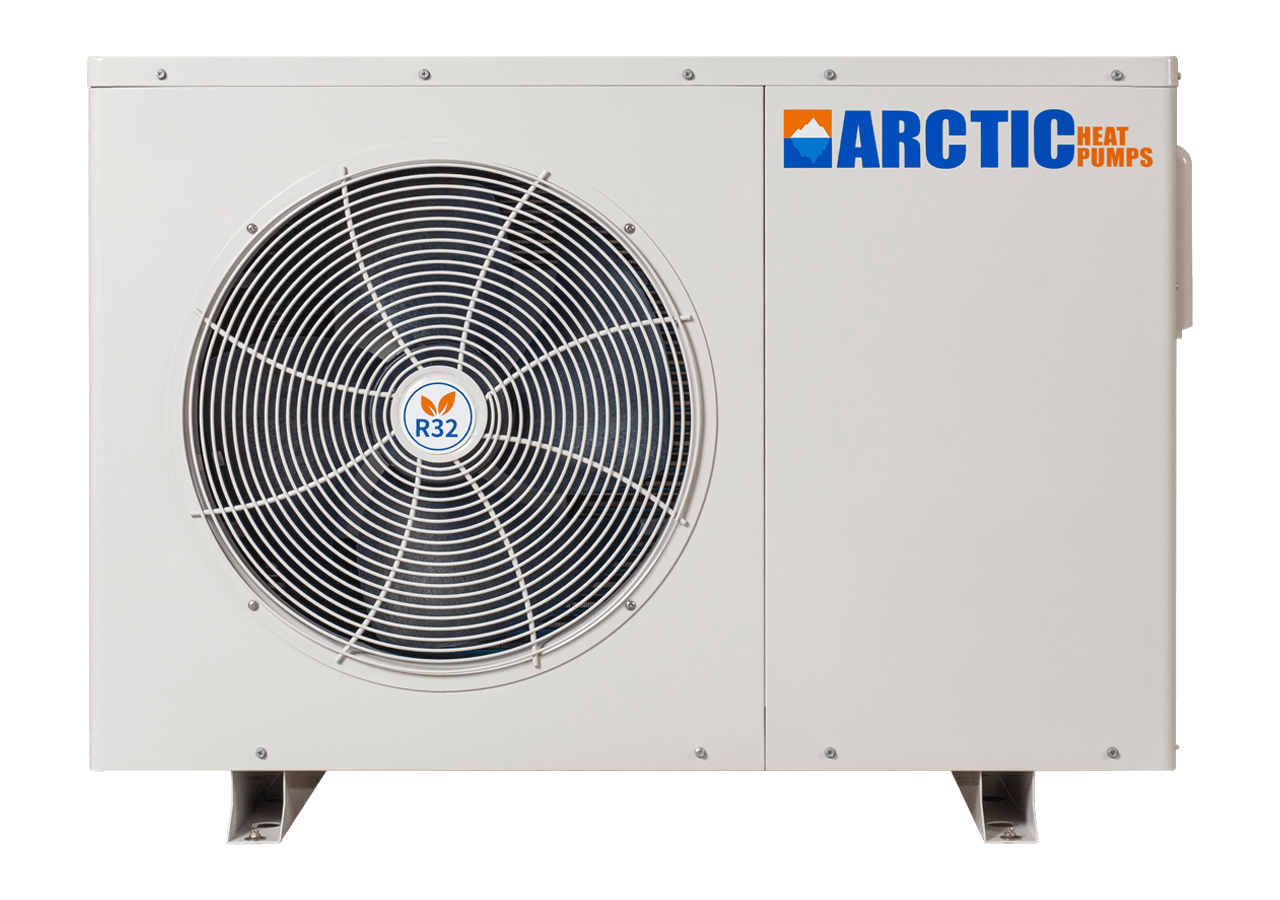

025ZA/B Heat/Chill Heat Pump
Chiller and Heater in one unit
While hot tub users most often reference the heating requirements, the Arctic Heat Pump is also a chiller if need. That’s right...It can heat and cool based on a simple controller selection. Ideal for hot climates that need a retreat from the hot summer heat! A cold water plunge is a must for Sauna owners. Now you can quickly change your hot tub to a cold plunge tub! Cold water therapy has many health benefits and is growing in popularity in North America as we discover what the Nordic Culture has practiced for centuries.
Excessively hot swimming pools cause problems with the chemical imbalance and can quickly become full of algae if not properly monitored. Chlorine evaporates as the water temperature rises. In areas such as California, Texas, Arizona and Florida, the hot summer temperatures can be difficult for pool owners. The Arctic Pool & Spa Heat Pumps allows owners to reduce the temperatures back down to proper levels. By Chilling your pool you can get reprieve from hot summer heat waves, when the temperature drops, the Arctic Heat Pump will switch back to heating mode.
Heating & Cooling
The Arctic 025ZA/B Heat Pumps works down to -4°F (-20°C). This air to water heat source is the most efficient cold weather heat pump on the market. Heats and cools with over 80% savings of traditional heating equipment. This unit is cable of producing up to 11 Kw or 37,532 BTU of heat energy. No other pool or spa heat pump on the market will outperform the Arctic 025ZA/B in colder weather. This allows you to open your pool earlier and close it later. It is also ideal for energy savings for spas and hot tubs. Working up to 104 F even in 20 F conditions! The Arctic 025ZA/B is great heat pump for most pools.
Three Modes
Heating, Cooling, and Auto
Includes Heat Pump Digital Controller
Easy to operate LCD controller. Set the water temperature and other parameters as you need, and monitor unit operation.
WiFi Remote Control Option
Control your Arctic Heat Pump and know the current operation of the heat pump at any time via your phone.
Double Rotor DC Inverter Compressor
Operating Temperature Range
-4°F (-20°C) to 113°F (45°C)
Spiral Titanium Heat Exchanger
Ultra Quiet DC Brushless Fan Motor
Sound Insulation
High Efficiency Fin Heat Exchanger
01
Heat Pump for hot tubs, spas and smaller pools or swim spas
02
Easy to install with no refrigeration mechanic needed
03
Vibration pads included
04
Drain pan and compressor low temp protection
05
Hot gas defrost
06
Drain Pan Freeze Protection for cold weather
07
TUV Rheinland certified for installation in North America
How it works
The Arctic Heat Pump harness the energy found in the air. By using an oversized evaporator the energy is removed and transferred to the refrigeration. A compressor compresses the gas causing its temperature to increase. The hot gas then passes through a titanium pool heat exchanger where it is transferred directly to the pool or spa water. In cooling mode the unit reverses direction and chills the pool water by removing the heat from the titanium heat exchanger and discharging it out the evaporator.
The unit consumes electricity at a rate of only 1/3 to 1/5 of the heating capacity that it produces. The result is energy savings as high as 80% compared to traditional electric or gas pool or spa heaters. Built in hot gas defrost and drain pan/compressor freeze protection for cold weather performance.
Example Layout - Pool or Spa Heat Pump
Specifications
01
1.5" water connections
02
Max Amps 10.8
03
220-240 VAC
04
Output 11 Kw (37,532 BTU)
05
Weight 212 LBS (96 Kg)
06
Flow rate 24 GPM (pool pump sold separately)
07
47" long x 21" wide x 29" tall
08
1 year parts warranty - 2 year compressor warranty (Extended Warranty Available)
Air to Water Swimming Pool & Spa Heat Pump
| Model | ARCTIC | 015ZA/B | 25ZA/B | 040ZA/B | 060ZA/B |
| Power Supply | V/PH/Hz | 220/1/50 (60) | 220/1/50 (60) | 220/1/50 (60) | 220/1/50 (60) |
| Heating Capacity Ranger |
kW | 1.3~5.2 | 2.75~11 | 4.38~17.5 | 6.45~25.8 |
| BTU/h | 4436~17742 | 9383~37532 | 14928~59710 | 22007~88030 | |
| COP Ranger | W/W | 3.6~13 | 3.6~13 | 3.6~13 | 3.6~13 |
| Heating Capacity (1) | kW | 5.2 | 11.0 | 17.5 | 25.8 |
| BTU/h | 17742 | 37532 | 59710 | 88030 | |
| COP (1) A:30/W:28 | W/W | 6.2 | 6.2 | 6.2 | 6.2 |
| Input Power (1) | kW | 0.84 | 1.77 | 2.82 | 4.16 |
| Input Current (1) | A | 3.8 | 8.1 | 12.8 | 18.9 |
| Heating Capacity (2) | kW | 5.2 | 11.0 | 17.5 | 25.8 |
| BTU/h | 17742 | 37532 | 59710 | 88030 | |
| COP (2) A:24/W:28 | W/W | 5.60 | 5.60 | 5.60 | 5.60 |
| Input Power (2) | kW | 0.93 | 1.96 | 3.13 | 4.61 |
| Input Current (2) | A | 4.2 | 8.9 | 14.2 | 20.9 |
| Heating Capacity (3) | kW | 5.2 | 11.0 | 17.5 | 25.8 |
| BTU/h | 17742 | 37532 | 59710 | 88030 | |
| COP (3) A:15/W:28 | W/W | 4.8 | 4.8 | 4.8 | 4.8 |
| Input Power (3) | kW | 1.08 | 2.29 | 3.65 | 5.38 |
| Input Current (3) | A | 4.9 | 10.4 | 16.6 | 24.4 |
| Heating Capacity (4) | kW | 4.8 | 10.0 | 16.7 | 23.5 |
| BTU/h | 16378 | 34120 | 56980 | 80182 | |
| COP (4) A:7/W:28 | W/W | 4.2 | 4.2 | 4.2 | 4.2 |
| Input Power (4) | kW | 1.14 | 2.38 | 3.98 | 5.60 |
| Input Current (4) | A | 5.2 | 10.8 | 18.1 | 25.4 |
| Heating Capacity (5) | kW | 4.3 | 9.2 | 14.4 | 21.0 |
| BTU/h | 14672 | 31390 | 49133 | 71652 | |
| COP (5) A:0/W:28 | W/W | 3.72 | 3.72 | 3.72 | 3.72 |
| Input Power (5) | kW | 1.16 | 2.47 | 3.87 | 5.65 |
| Input Current (5) | A | 5.3 | 11.2 | 17.6 | 25.7 |
| Heating Capacity (6) | kW | 3.6 | 7.5 | 12.0 | 18.0 |
| BTU/h | 12283 | 25590 | 40944 | 61416 | |
| COP (6) A:-7/W:28 | W/W | 3.16 | 3.16 | 3.16 | 3.16 |
| Input Power (6) | kW | 1.14 | 2.37 | 3.80 | 5.70 |
| Input Current (6) | A | 5.2 | 10.8 | 17.3 | 25.9 |
| Compressor | Rotary | TWIN Rotary | TWIN Rotary | TWIN Rotary | |
| Compressor Qty | 1 | 1 | 1 | 1 | |
| Fan Qty | 1 | 1 | 1 | 1 | |
| Noise | dB(A) | 48 | 52 | 54 | 54 |
| Water Outlet/Water Inlet | inch | 1–1/2" | 1–1/2" | 1–1/2" | 1–1/2" |
| Water Flow Volume | GPM | 16 | 24 | 32.5 | 33 |
| Water Pressure Drop | PSI | 1.7 | 2.2 | 2.2 | 2.3 |
| Fan Direction | horizontal | horizontal | horizontal | horizontal | |
| Refrigerant Type | R410A | R410A | R410A | R410A | |
| Unit Net Dimensions (L/M/H) | mm | 930/360/550 | 1115/470/700 | 1115/470/945 | 1195/470/1285 |
| Unit Shipping Dimensions (L/M/H) | mm | 1035/395/585 | 1205/525/725 | 1205/525/975 | 1285/525/1315 |
| Net Weight | kg | 55 | 90 | 108 | 121 |
| Shipping Weight | kg | 58 | 96 | 116 | 131 |
NOTE:
01
Heating - Outdoor air temp: 30°C/24°C, Outlet water temp: 28°C, Input water temp: 26°C
02
Heating - Outdoor air temp: 24°C/19°C, Outlet water temp: 28°C, Input water temp: 26°C
03
Heating - Outdoor air temp: 15°C/12°C, Outlet water temp: 28°C, Input water temp: 26°C
04
Heating - Outdoor air temp: 7°C/6°C, Outlet water temp: 28°C, Input water temp: 26°C
05
Heating - Outdoor air temp: 0°C/-°C, Outlet water temp: 28°C, Input water temp: 26°C
06
Heating - Outdoor air temp: -7°C/-°C, Outlet water temp: 28°C, Input water temp: 26°C
| Dimension (L x W x H) | 47 x 21 x 29 Inch |
| Weight | 212 Pound |
