Baode BL26C Flat Plate Heat Exchanger 20 Plate with Insulation Kit 1

Baode BL26C Flat Plate Heat Exchanger - 20 Plate

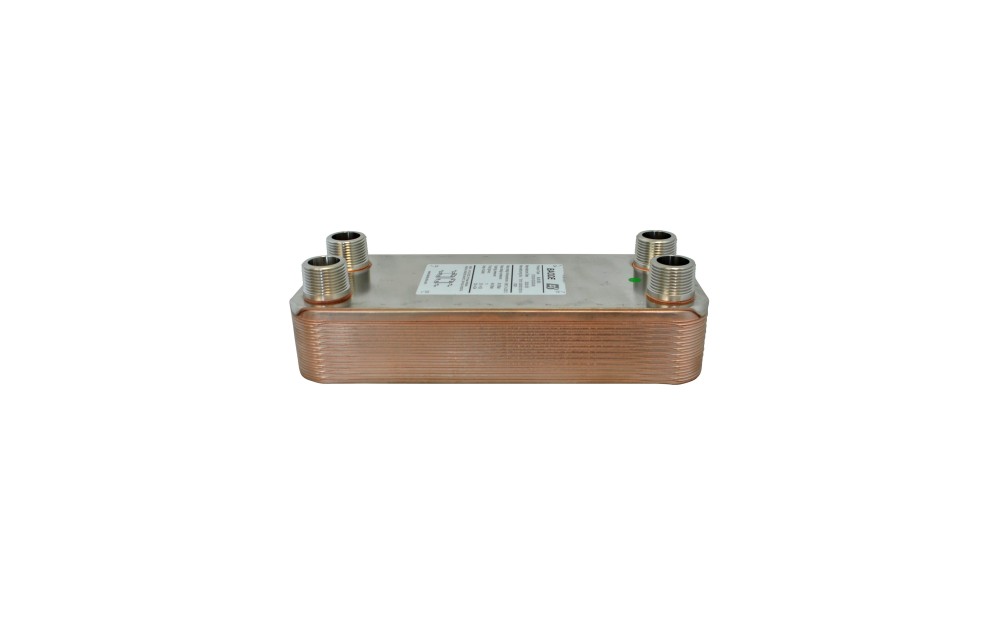

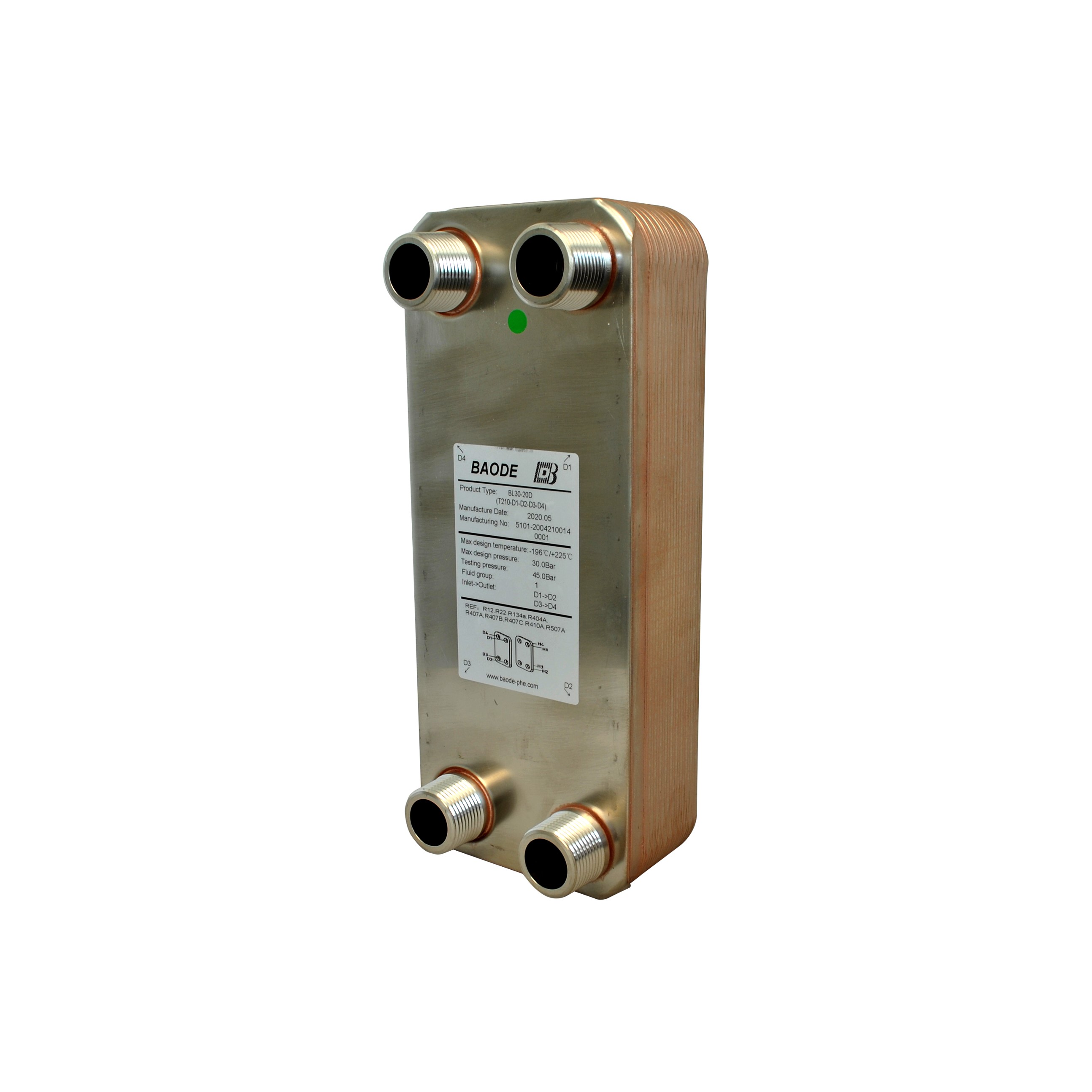

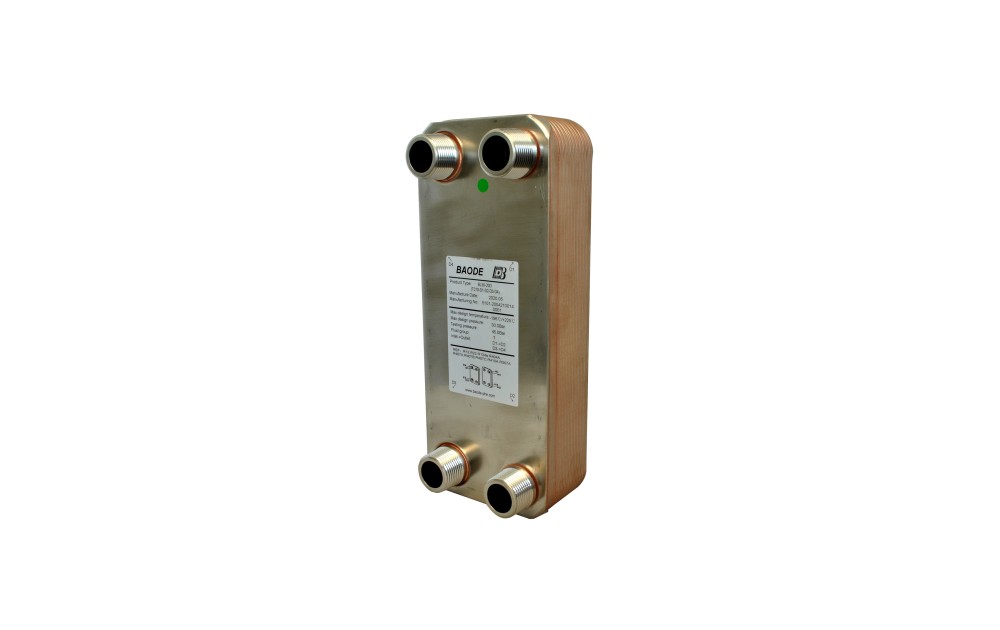

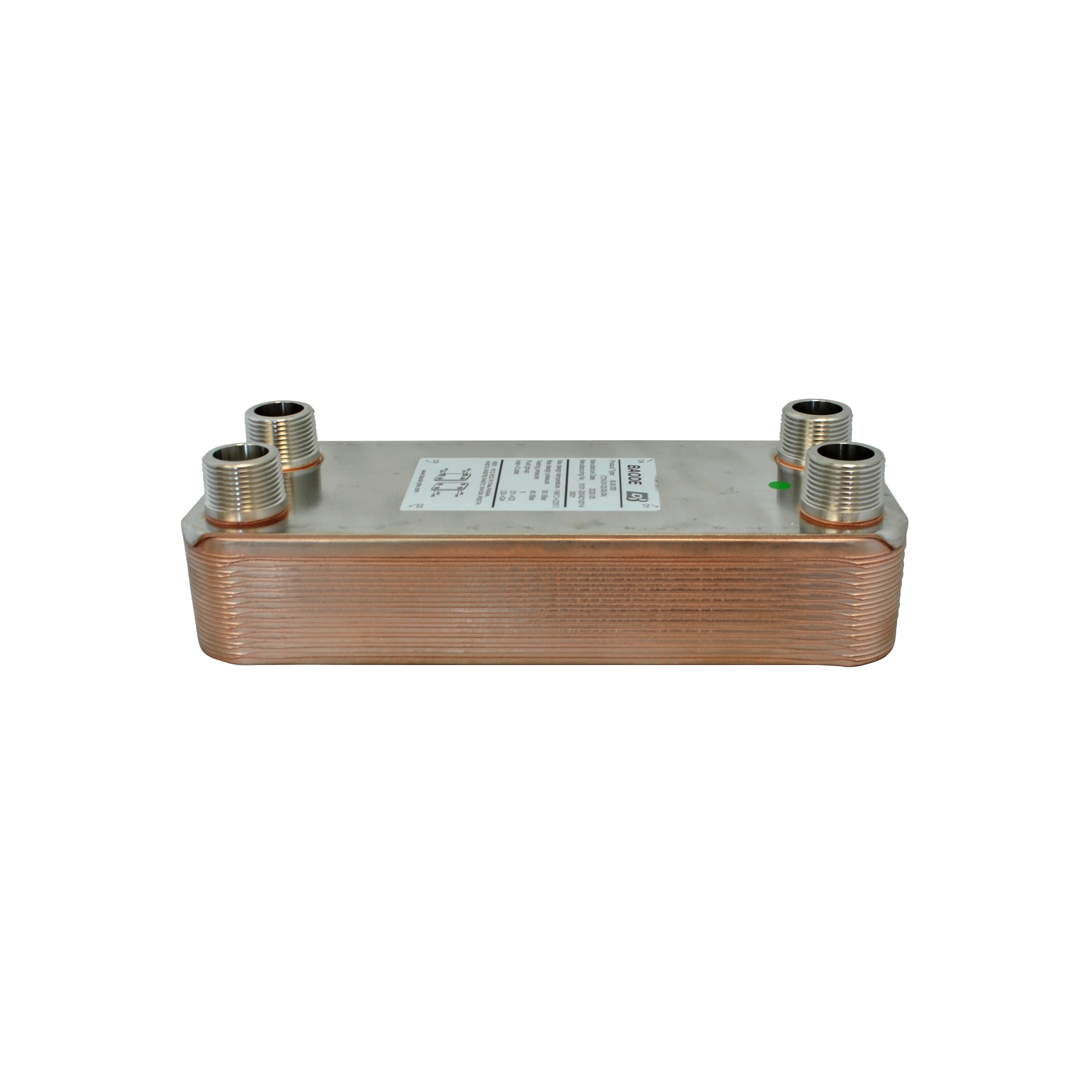

Baode Brazed Plate Heat Exchangers consists of stainless steel corrugated channel plates brazed together at every contact point with copper to provide the best heat transfer efficiency and pressure resistance. Channels are formed between the plates with the corner ports arranged so that the two media flow through alternate channels in opposite directions.

Baode Brazed Plate Heat Exchangers have several advantages over traditional heat exchangers. The high heat transfer efficiency, makes them extremely compact and lightweight, providing easy installation where space is limited. The units have no gaskets and are therefore suitable in applications where temperature and/or pressure is high.

Applications:

• HVAC heating/cooling
• Refrigerant applications
• Industrial heating/cooling
• Oil cooling

Specifications:

• Material:
  • Cover Plate: 304 Stainless Steel
  • Connections: 304 Stainless Steel
  • Plates: 316L Stainless Steel
  • Brazing Material: 99.99% Copper
• Max Working Temp: 225C
• Working Pressure: 0-30 bar
• Heat Exchange Area :  0.54 square meters, 5.8 square feet
• Volume: 1.692 L
• Max Flowrate: 8.1 m3/h, 35.84 gpm
• Fittings: 1" MTP
• Dimensions:
  • Width: 124mm, 5"
  • Height: 304mm, 12"
  • Thickness: 61mm, 2.4"
  • Horizontal Port Distance: 70mm, 2.8"
  • Vertical Port Distance: 250mm, 9.8"
• Weight: 5 kg, 11 lbs

Insulation Kit Included

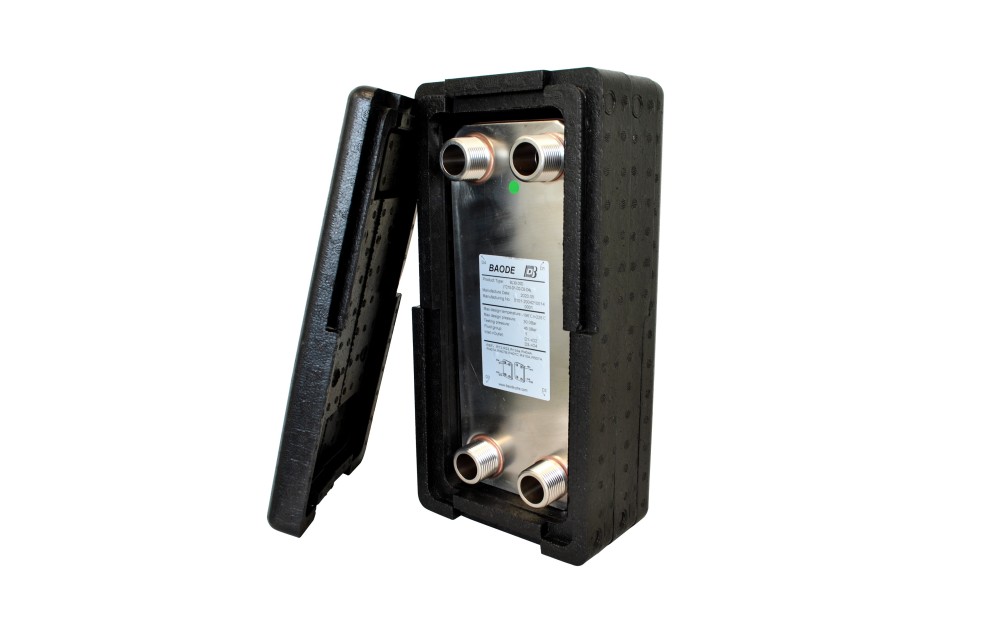

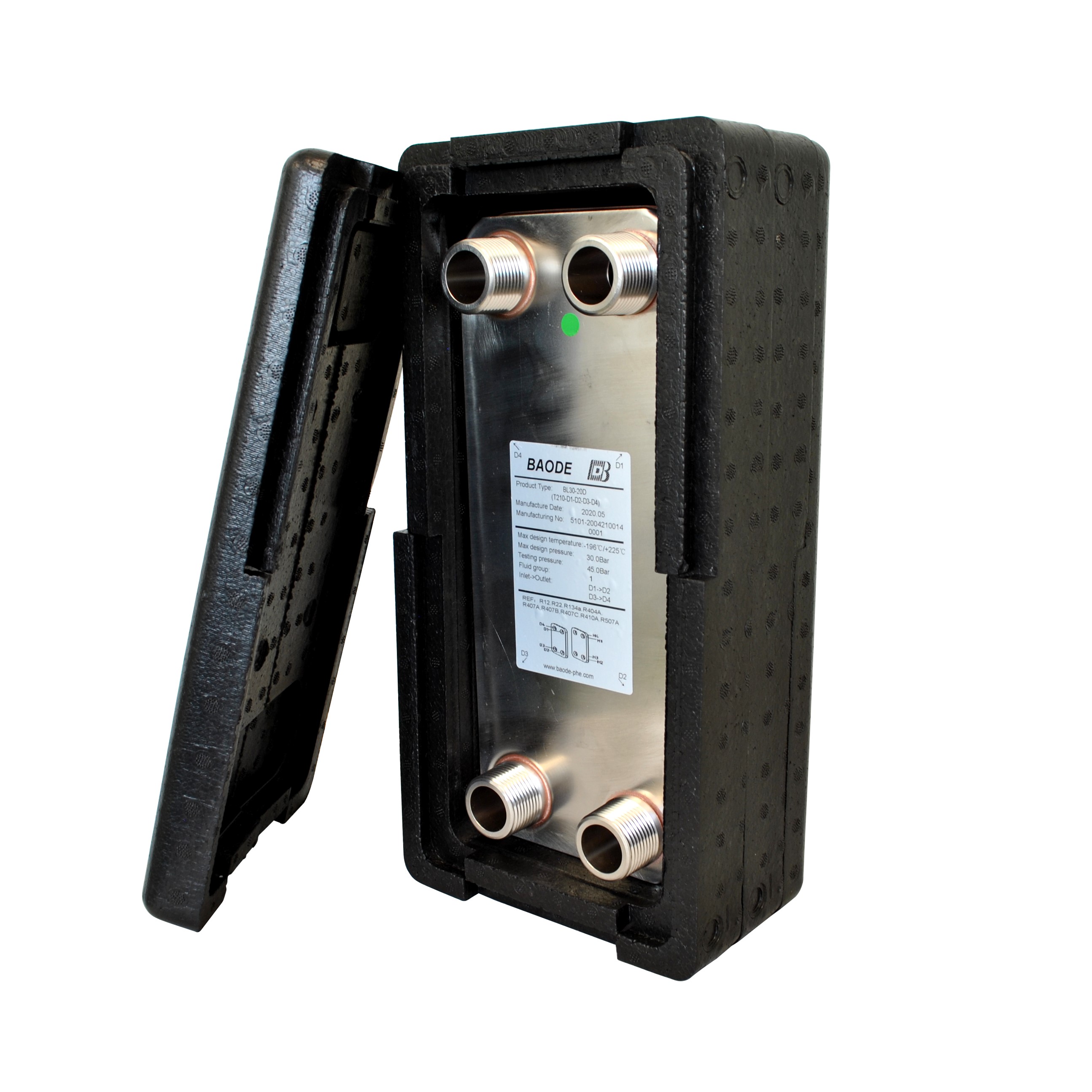

The Baode heating insulation for Brazed Plate Heat Exchangers are easily assembled and dismantled. The heating insulation provides protection from the heat pack and keeps the climate in the operating room dry and not too hot. Baode heating insulation is expandable thanks to the mould design. By adding layers it can accommodate any number of heat exchanger plates and be fit for a variety of different connection locations.
