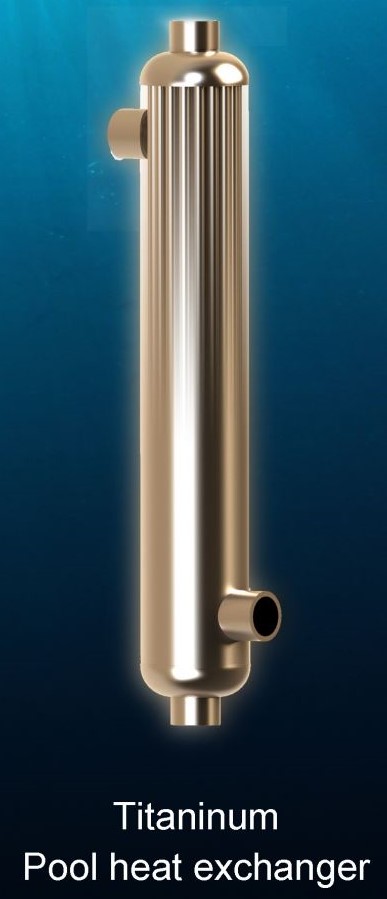

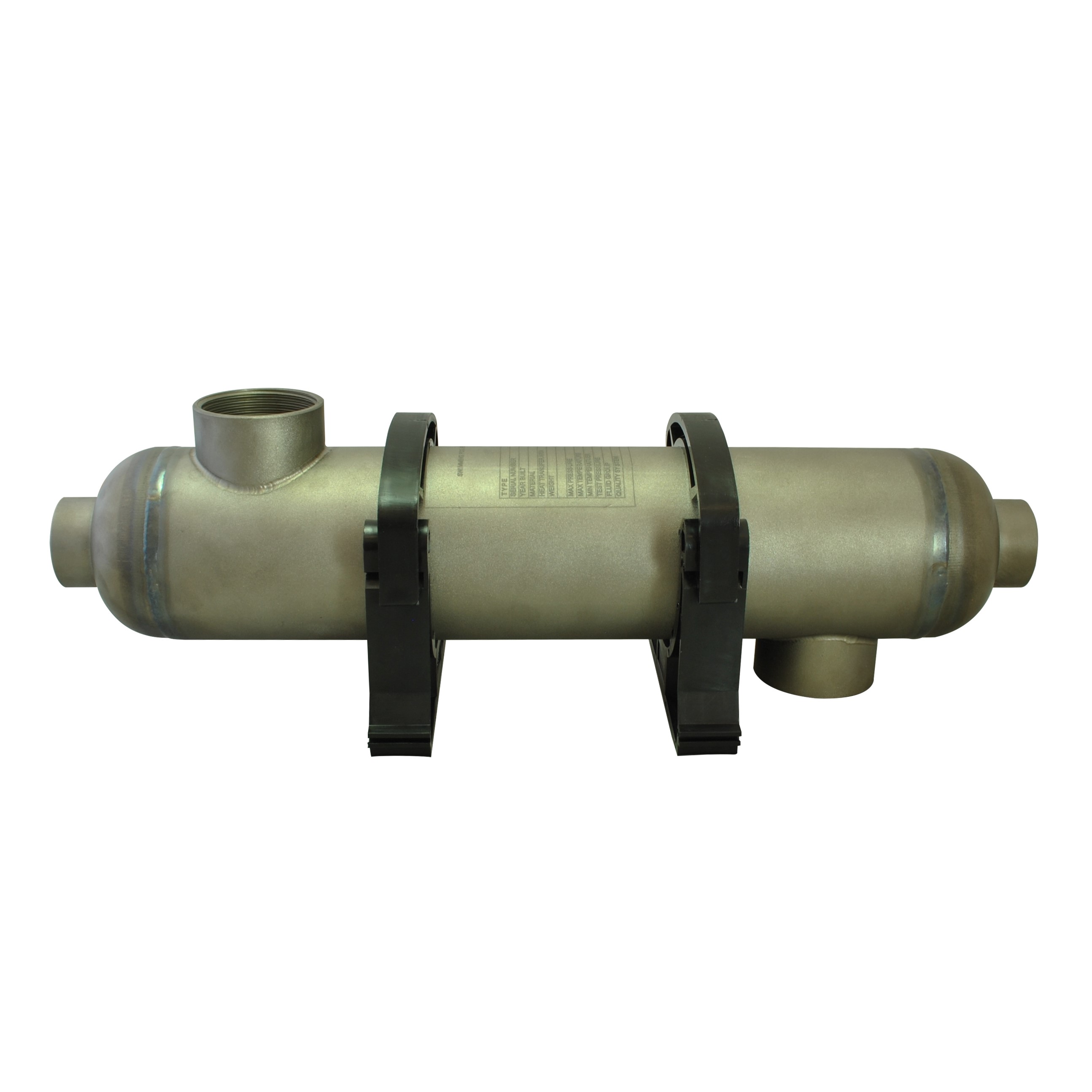

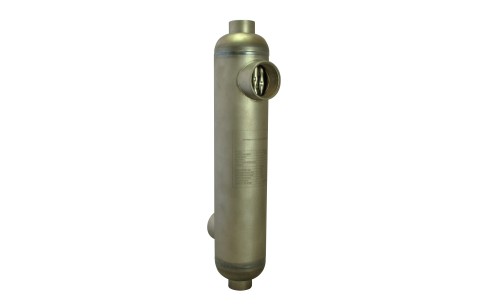

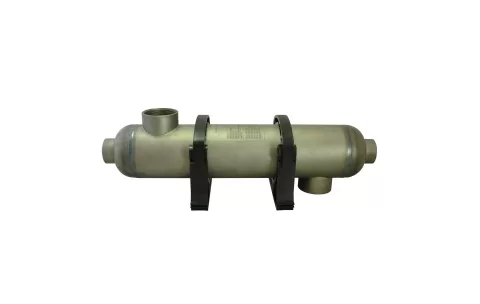

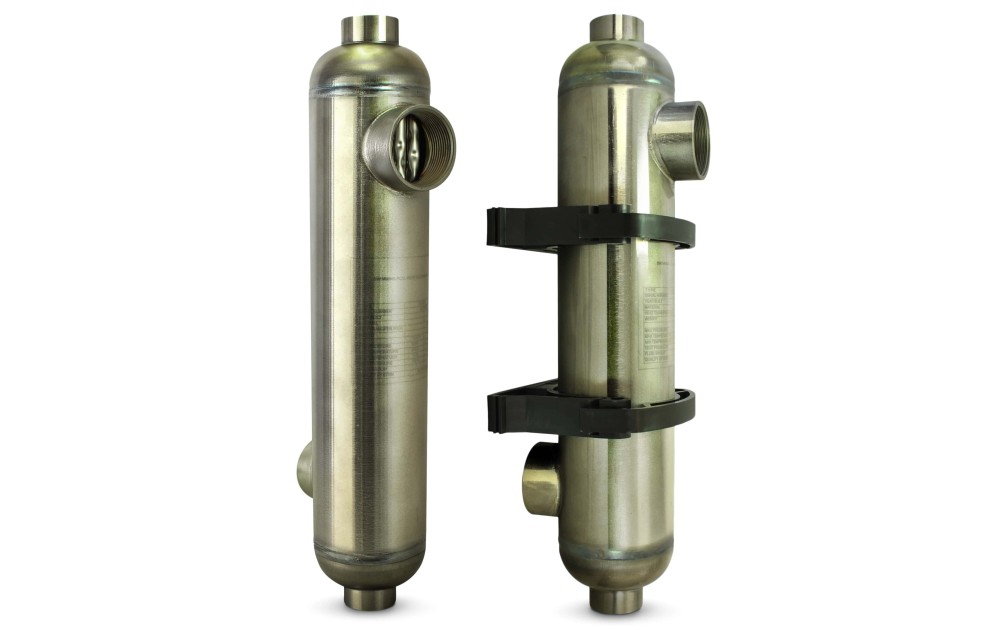

BluePool ST45T Heat Exchanger Titanium 155k
C$1,076.99
- Product Code: ST-EXCH-ST45T
- Availability: 6
BLUEPOOL ST45S Pool Heat Exchanger - Stainless Steel - 155K BTU

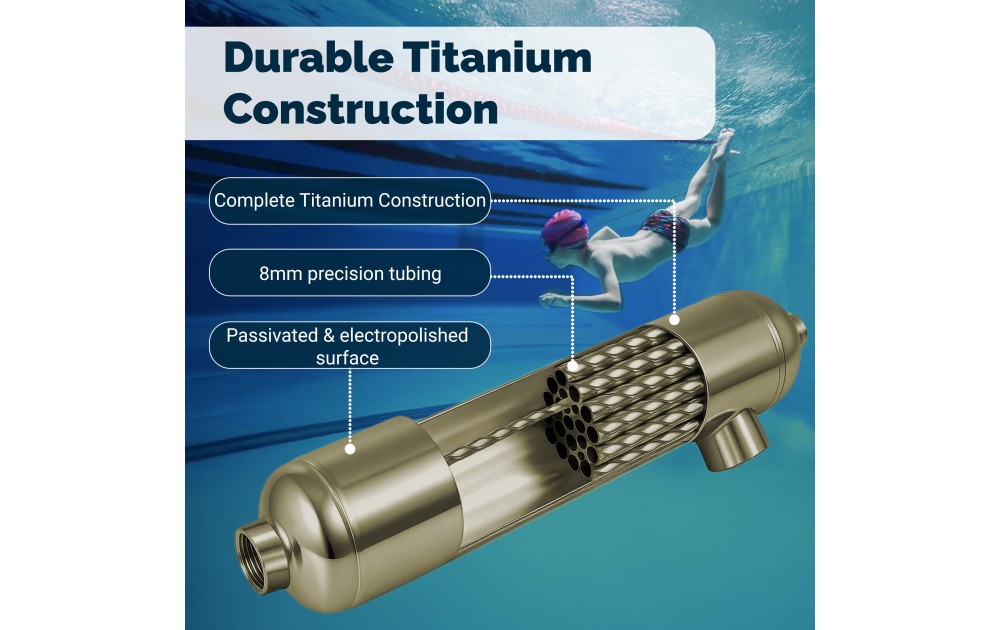

BLUEPOOL heat exchangers are fully constructed with a pressurized shell and spiral corrugated inner tube. This ensures high velocities inside the unit making BLUEPOOL heat exchangers a very reliable, efficient and cost effective way to transfer heat indirectly between any hot water circuit, steam circuit and any pool or spa circuit, besides other applications.
Applications:
- Extremely high salt water concentrations
- Swimming pools heated by high temperature sources (steam, refrigerants, solar)
- Corrosive fluids
- Systems with operating temperatures above 212 F (100C)

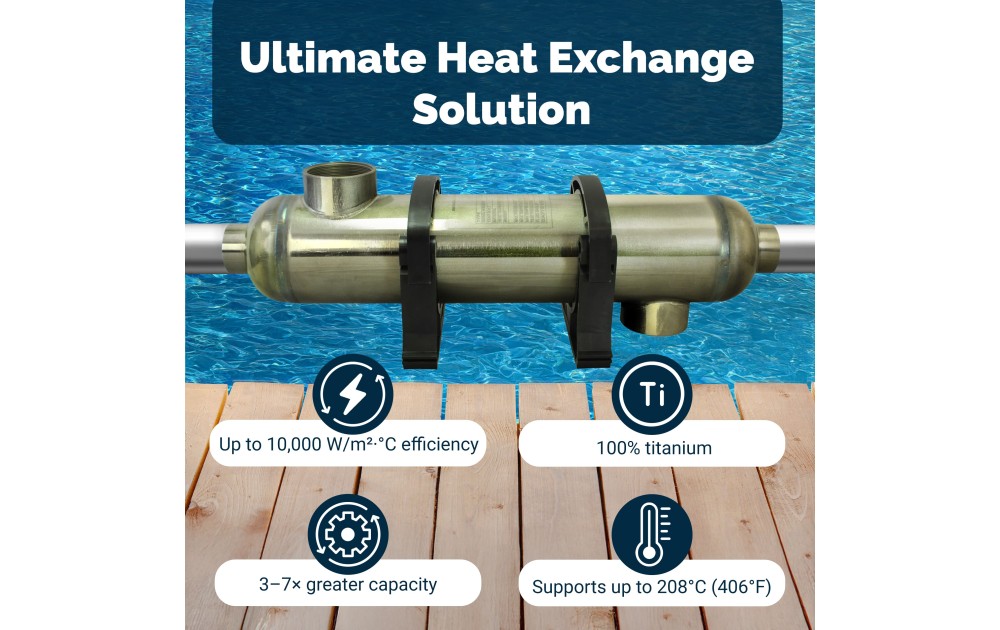

Advantages:
- High efficiency, coefficient up to 10000 w/m2 deg C, Heat exchanging capacity 3-7 times traditional equipment.
- Compact configuration, occupy small area, one tenth as the traditional equipment.
- Titanium material, endure high temperature, pressure and minimum corrosion.
- Helix screw thread elasticity heat exchange bundle, eliminate the stress.
- Design flux speed is 5.5m/s, less dirt
- Big flow volume
- Compactable
- Easy installation and durable.

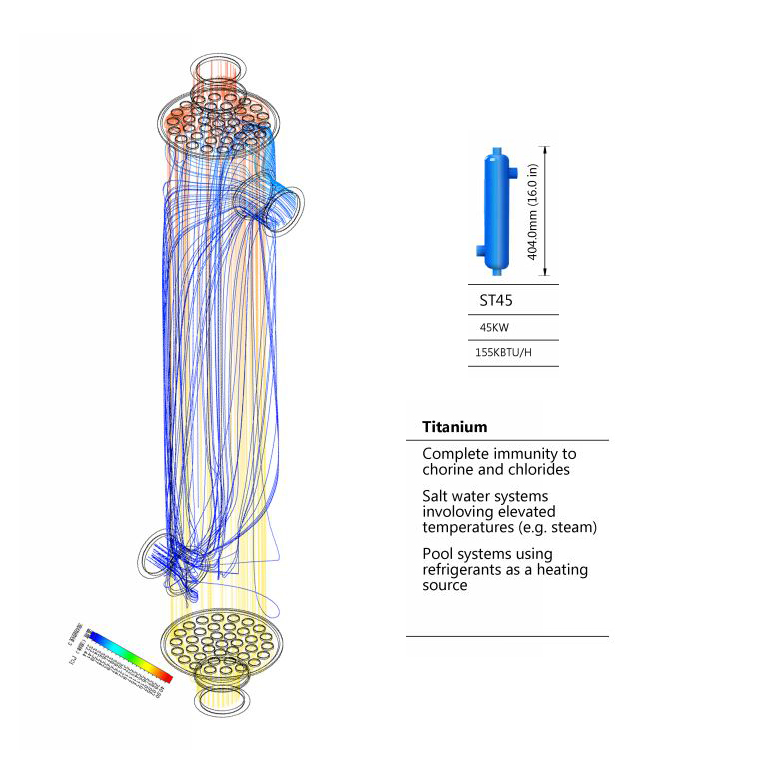

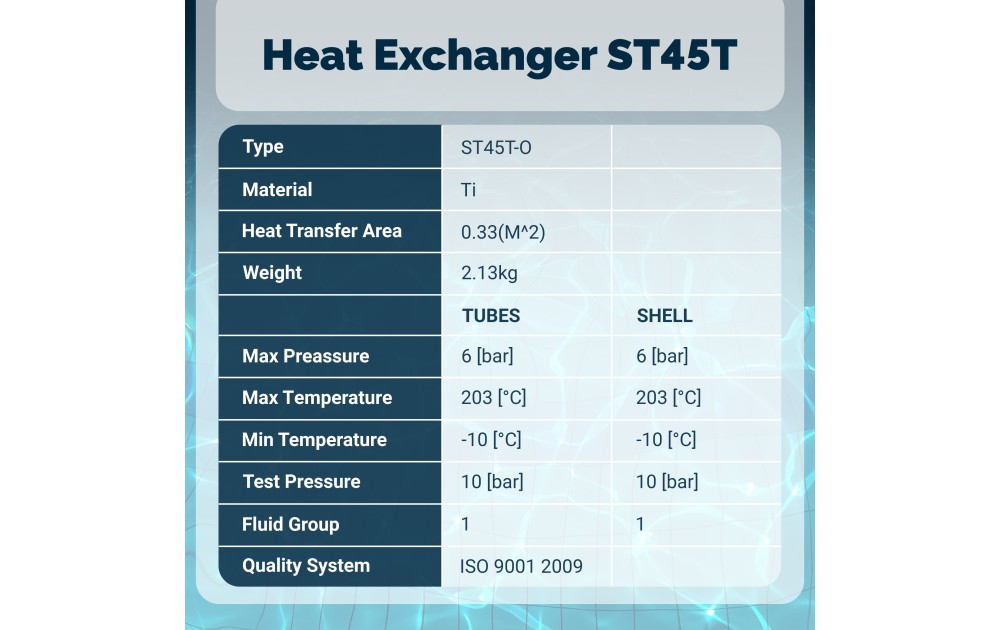

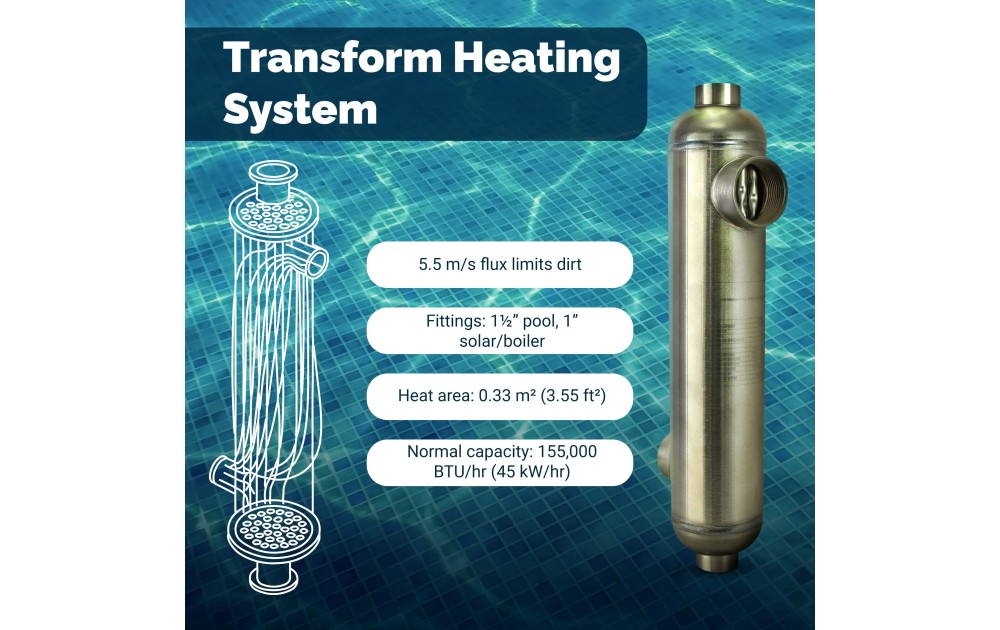

Features:
- Material: Titanium
- Design Temperature: 208 C (406 F)
- Heat transfer area : 0.33 square meters/3.55 square feet
- Fittings: 1 1/2" pool side | 1" solar/boiler side
- Normal working capacity: 155,000 BTU/hr (45 Kw/hr)
- Dimensions 3" x 16"
- Weight: 6.5 LBS

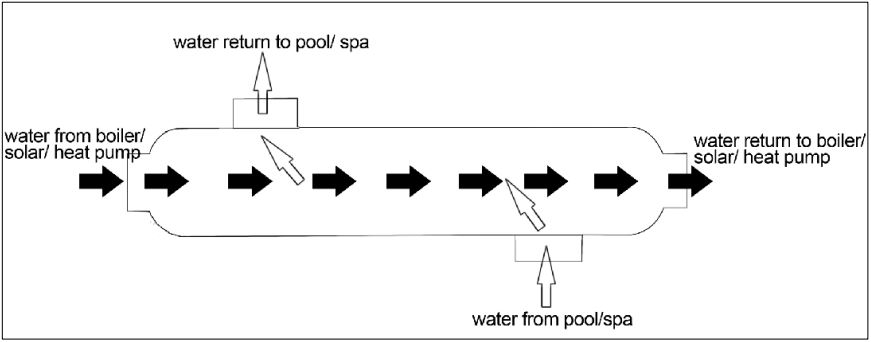

Always install the pool & Spa heat exchanger in a counter flow pattern. Pool & spa heat exchangers should be installed downstream of the filtration and pumping equipment.

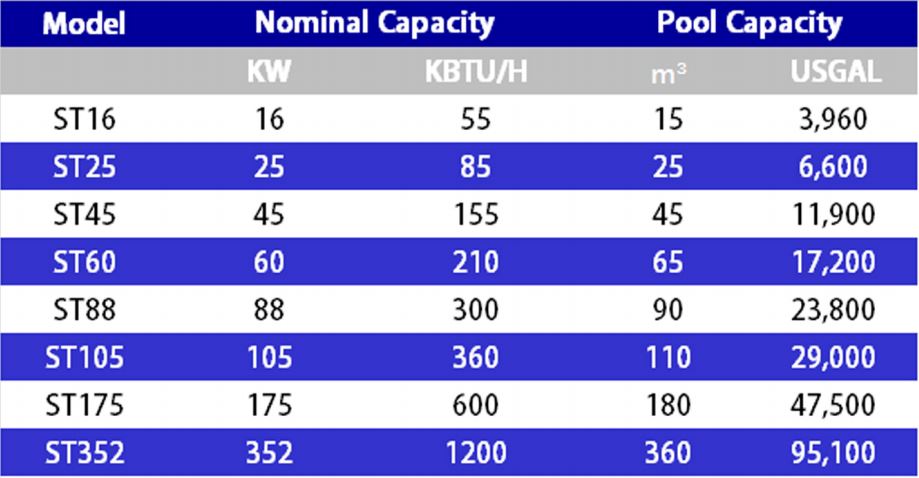

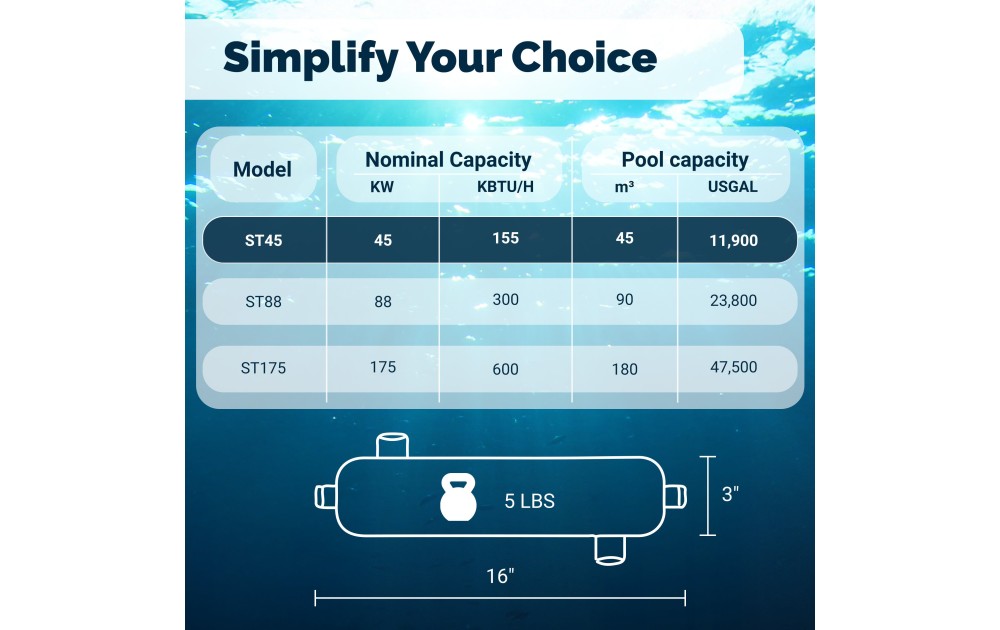

Operating Specifications for Solar Pool Heat Exchangers
- ST45 is a smaller solar pool heat exchanger that is typically used in conjunction with an existing pool heater and solar. This unit will do a good job of maintaining the water temperatures initially supplied by an auxiliary heat source such as a gas heater. Total Heat exchange surface area is 0.33 M2(3.55 ft2)
- ST88 is a larger pool heat exchanger that can be used with a larger solar system and other heat sources as the primary heat source. Sizing the pool collectors is important for proper operation of a solar pool heater. Total Heat exchange surface area is 0.64 M2(6.9 ft2)
- ST175 is an x-large commercial pool heat exchanger that can be used with a larger solar system and other heat sources as the primary heat source. Sizing the pool collectors is important for proper operation of a solar pool heater. Total Heat exchange surface area is 1.55 M2(16.7ft2)

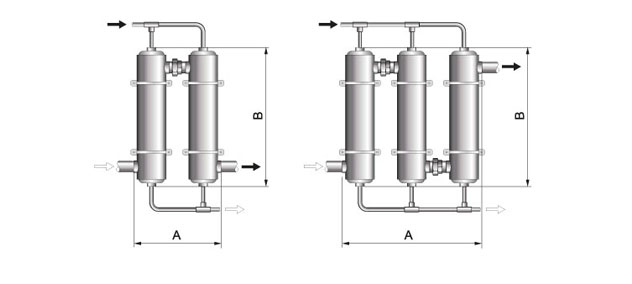

Add Heat Exchangers in Series to Expand System Sizing for Larger Pools
