Thermax Max Absorber 2m x 1m Panel

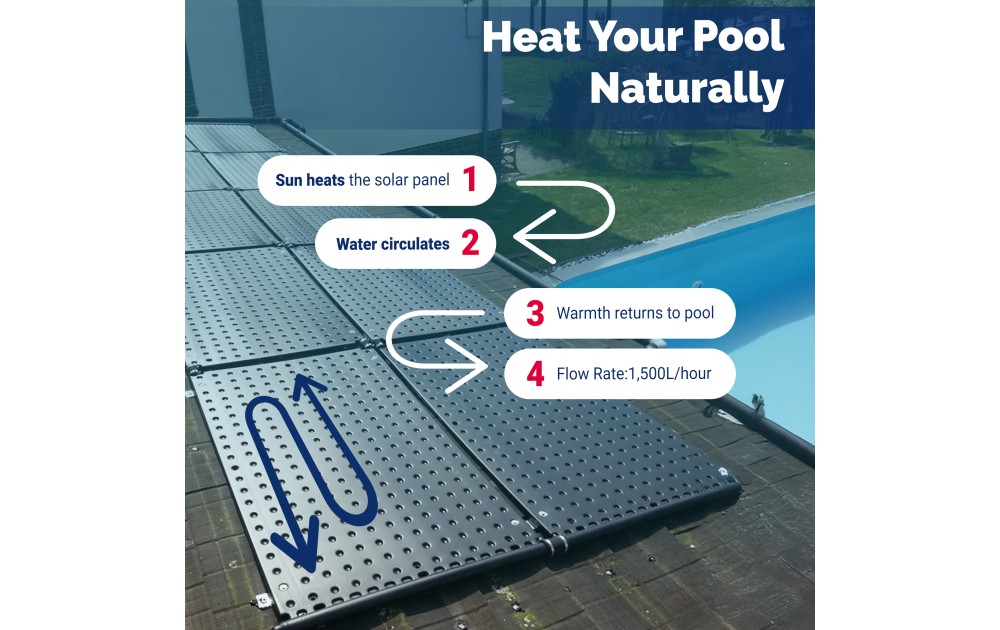

SOLAR POOL HEATER

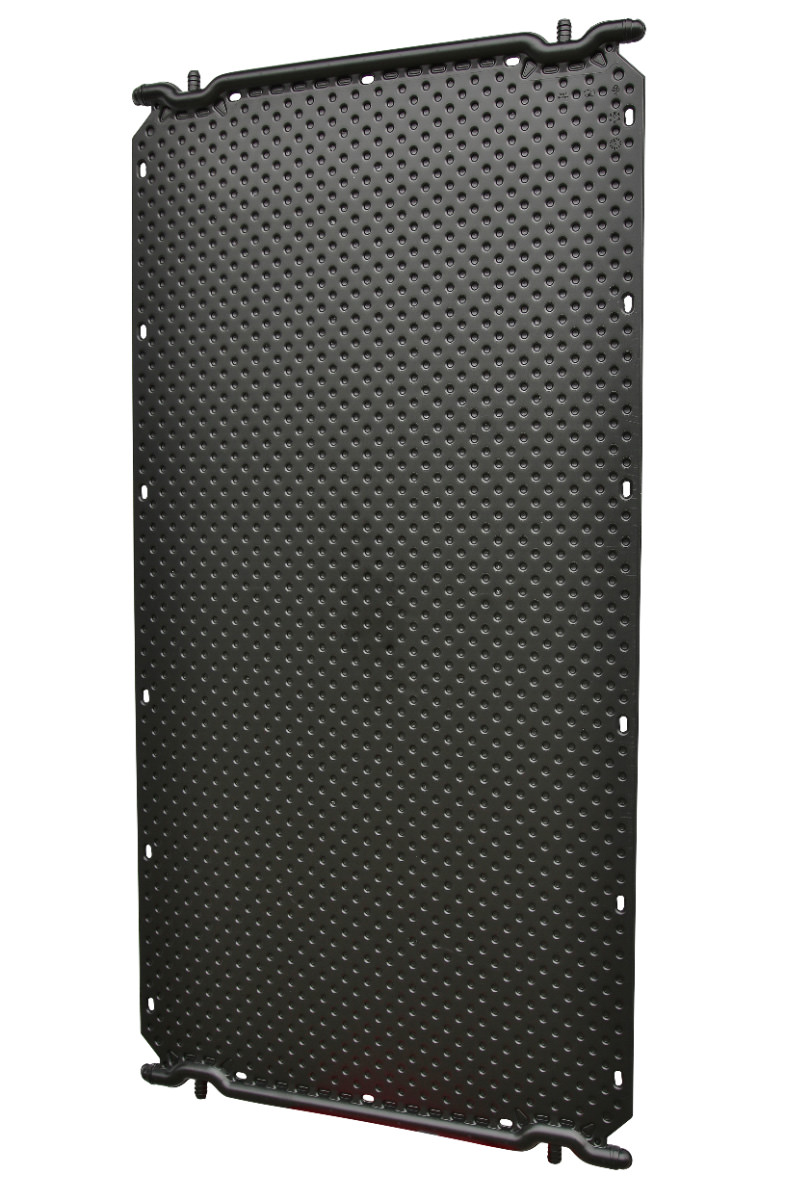

Thermax max absorber panel for expanding Thermax packages and creating custom configurations.
The OKU solar mats can be individually adapted to the available surface thanks to the very simple modular system. The solar absorbers can be installed flat, on edge, vertically or at an angle.
FEATURES
- Universal connections
- Full flow
- Easy assembly - modular system

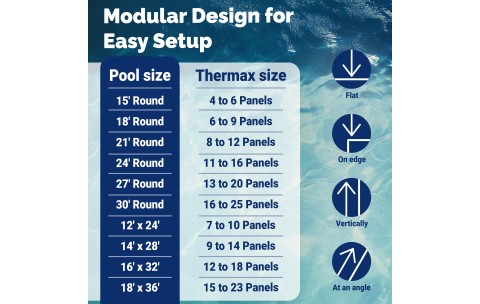

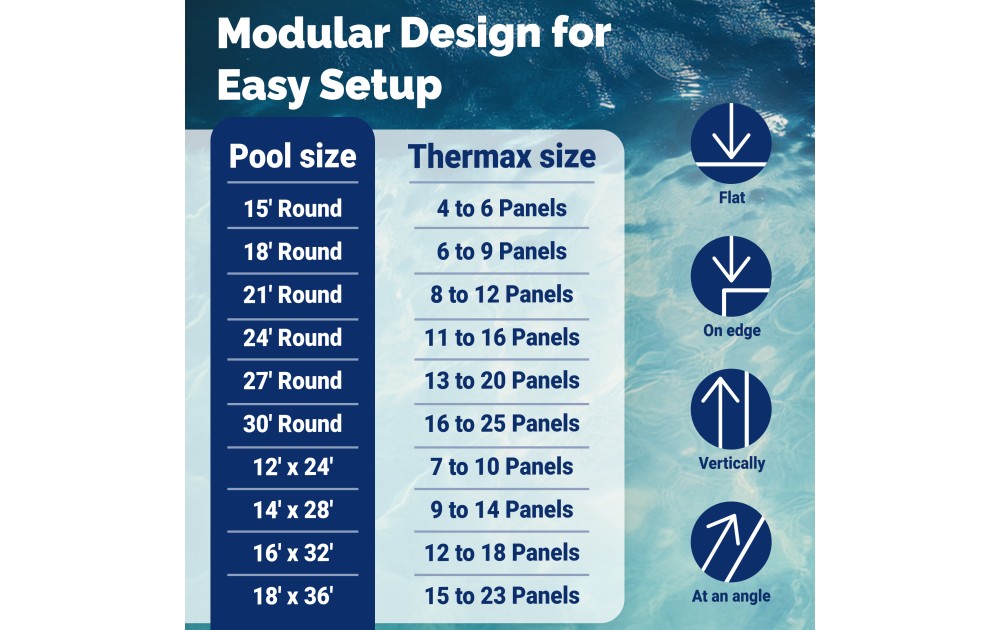

- Simple roof area calculation
- Chemical resistant, swimming pool water resistant

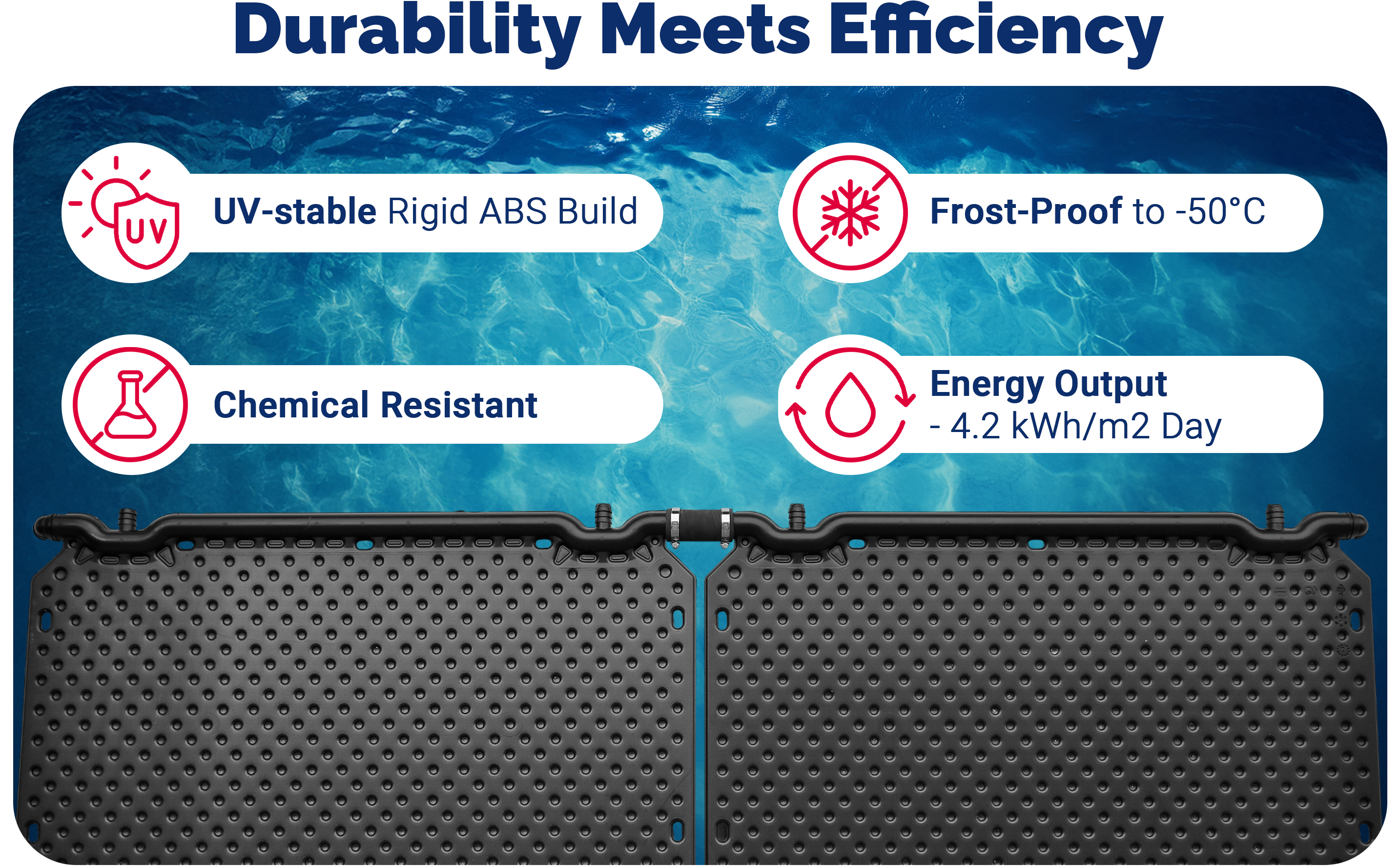

- Absolutely frost-proof down to - 50 °C without antifreeze

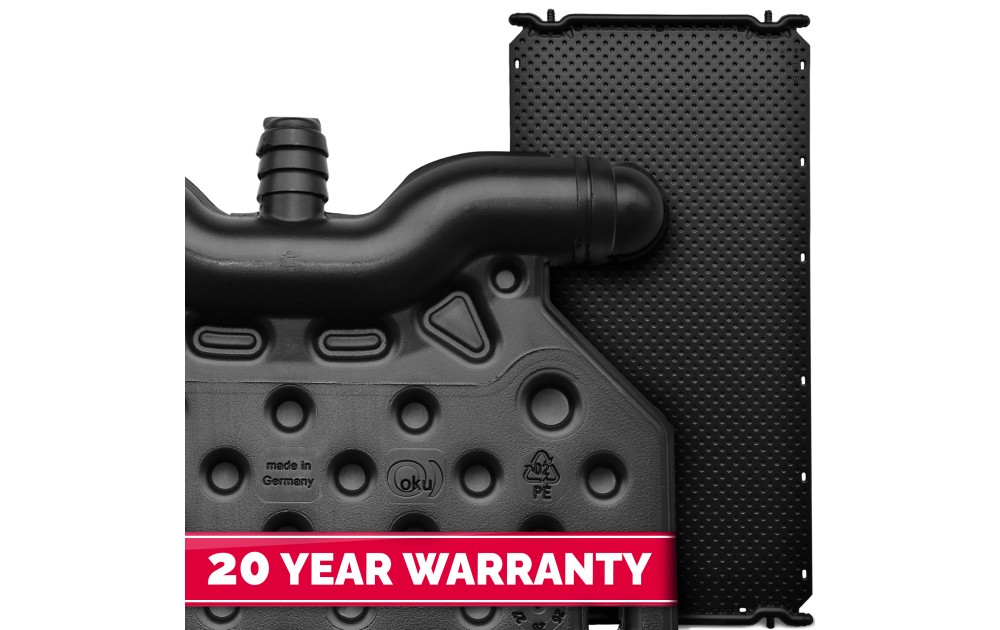

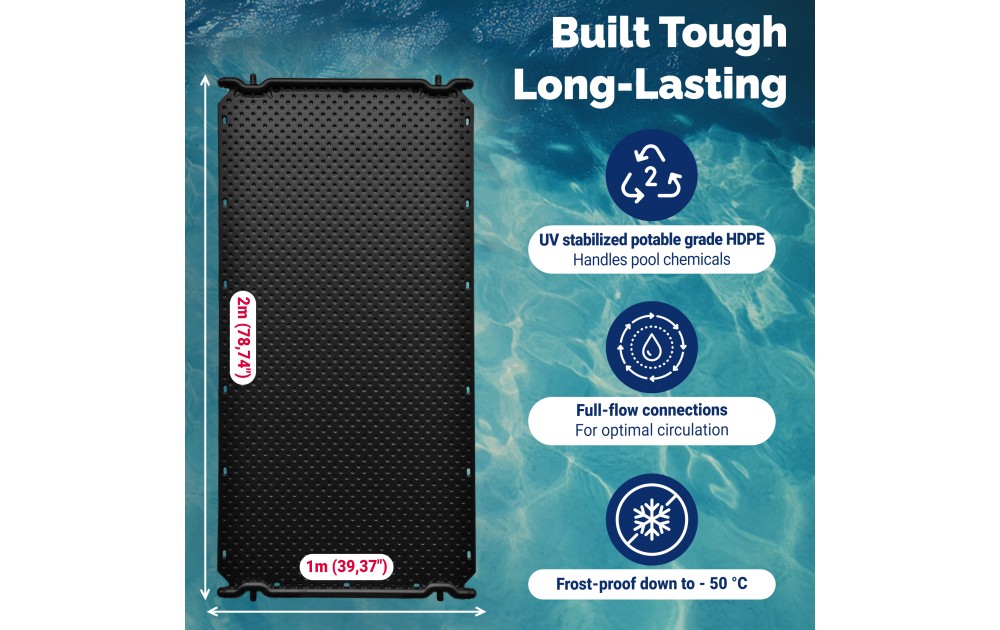

- Manufactured in one piece
- 100% safe against animal biting
- Walkable
- Highest efficiency, due to optimized geometry

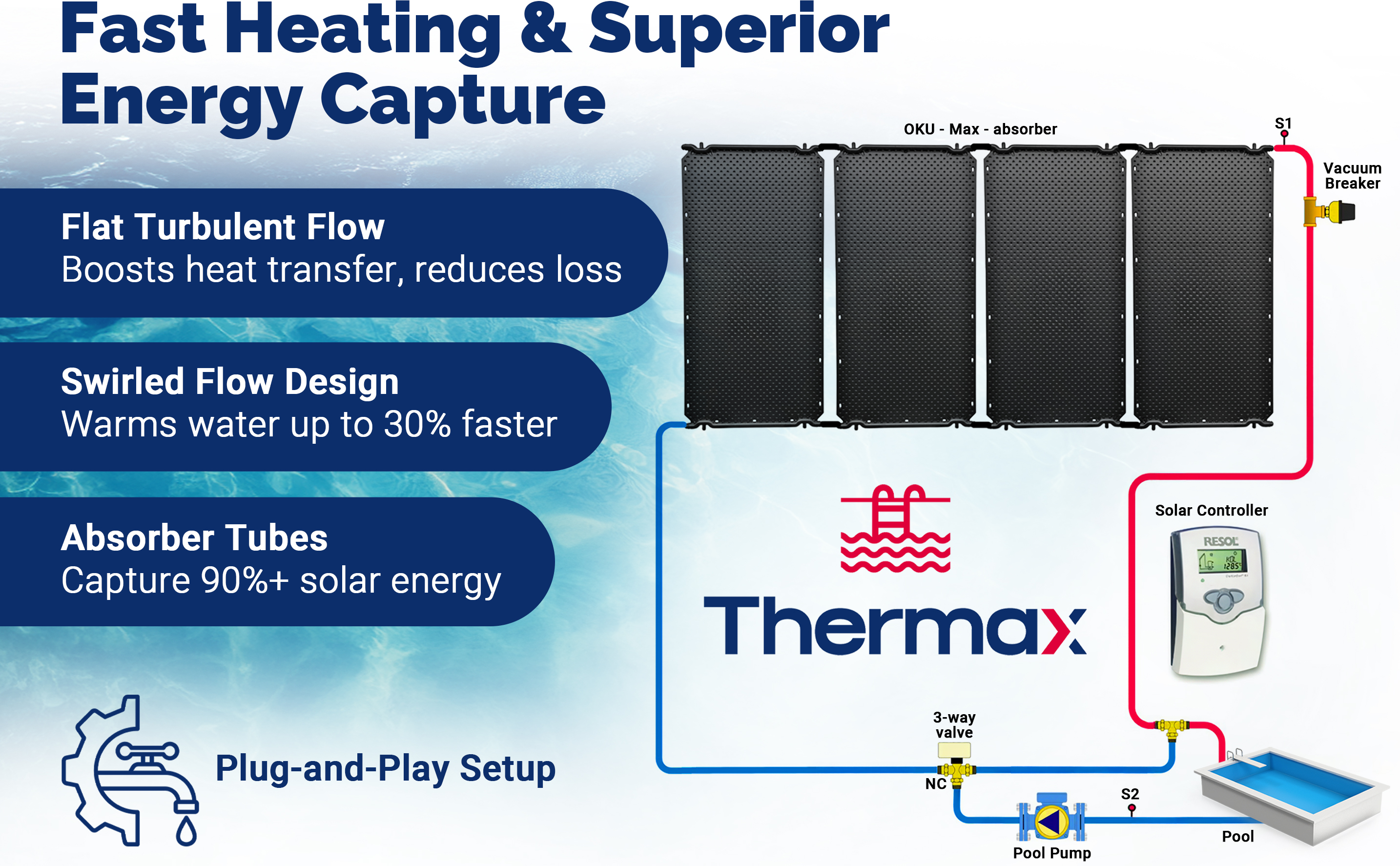

- Optimal swirled flow
- Increased pressure resistance due to optimized shape
- Maximum flexibility
-

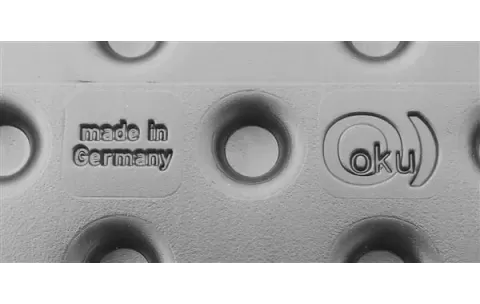

Made in Germany !!!

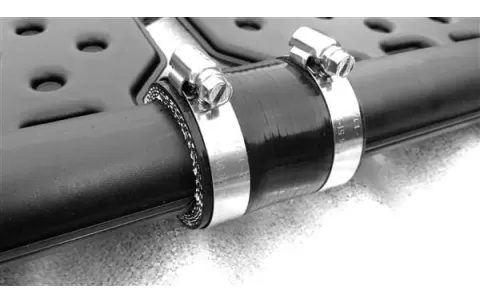

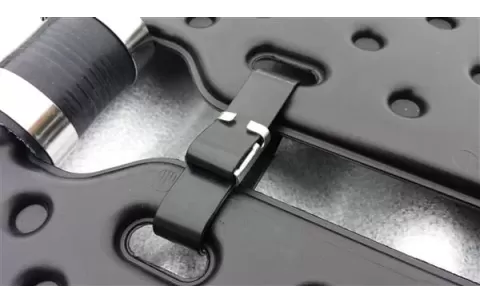

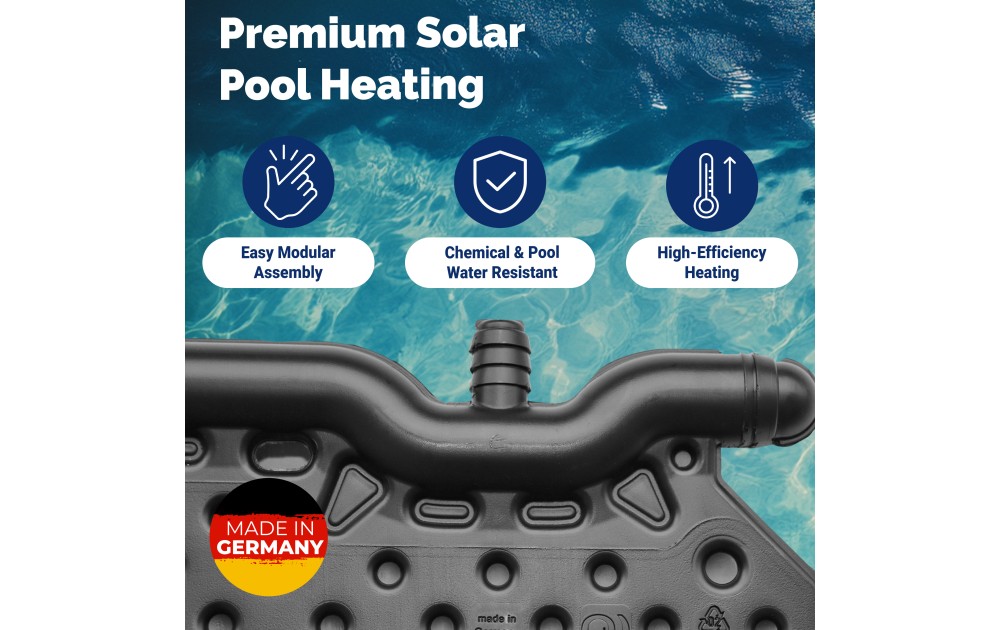

Silicone connections with Stainless Steel Clamps
Fast Installation
Made in Germany
TECHNICAL SPECIFICATIONS:
OKU® - Max - absorber: |
Information per max absorber |
Information per m² |
---|---|---|
Low pressure loss: |
0.005 bar at 400 liters per hour |
0.003 bar at 200 l/h/m² |
Flow rate: |
300 - 500 liters per hour |
150 - 250 liters per hour |
Weight: |
approx. 11.6 kg - water content 11.6 liters |
approx. 5.8 kg - water content 5.8 liters |
Test pressure: |
4.5 bar at normal temperature |
4.5 bar at normal temperature |
Operating pressure: |
up to 1.2 bar at 40 °C |
up to 1.2 bar at 40 °C |
Burst pressure: |
> 12 bar, resistant to negative pressure |
> 12 bar, resistant to negative pressure |
Efficiency: |
up to approx. 85% - performance up to 1.2 kW/h |
up to approx. 85% - performance up to 0.85 kWh/m² |
Ø Calculated value: |
1.0 - 1.2 kW/h corresponds to 8 - 10 kW per day |
0.5 - 0.6 kW/h/m² corresponds to 4 - 5 kW per day |
Idle proof: |
Temperature resistant from -50°C to +115°C |
Temperature resistant from -50°C to +115°C |
Dimension (L x W x H) | 3 x 40 x 79 Inch |
Weight | 10 Pound |
